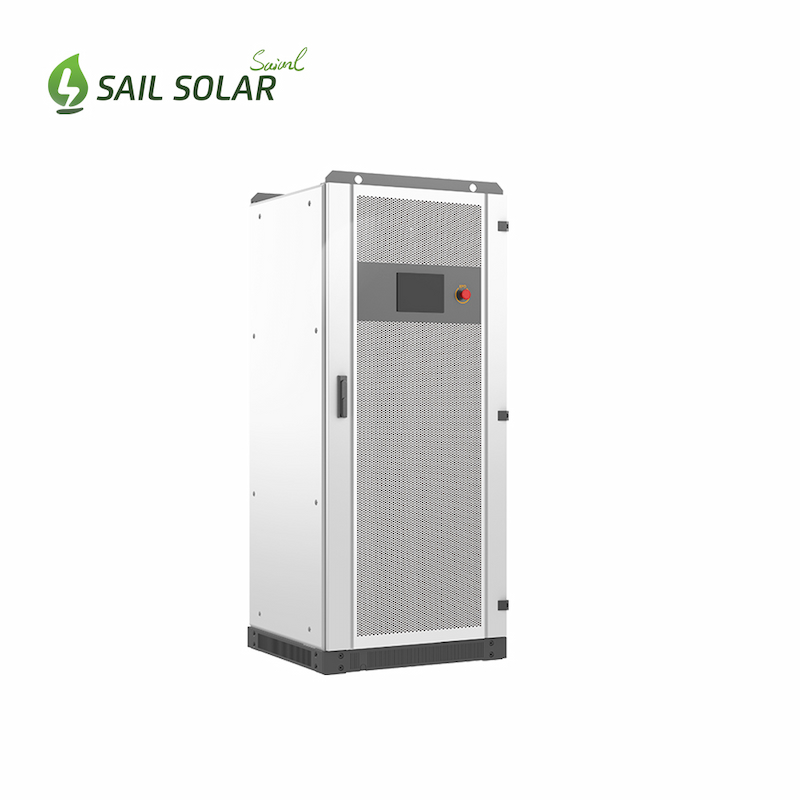

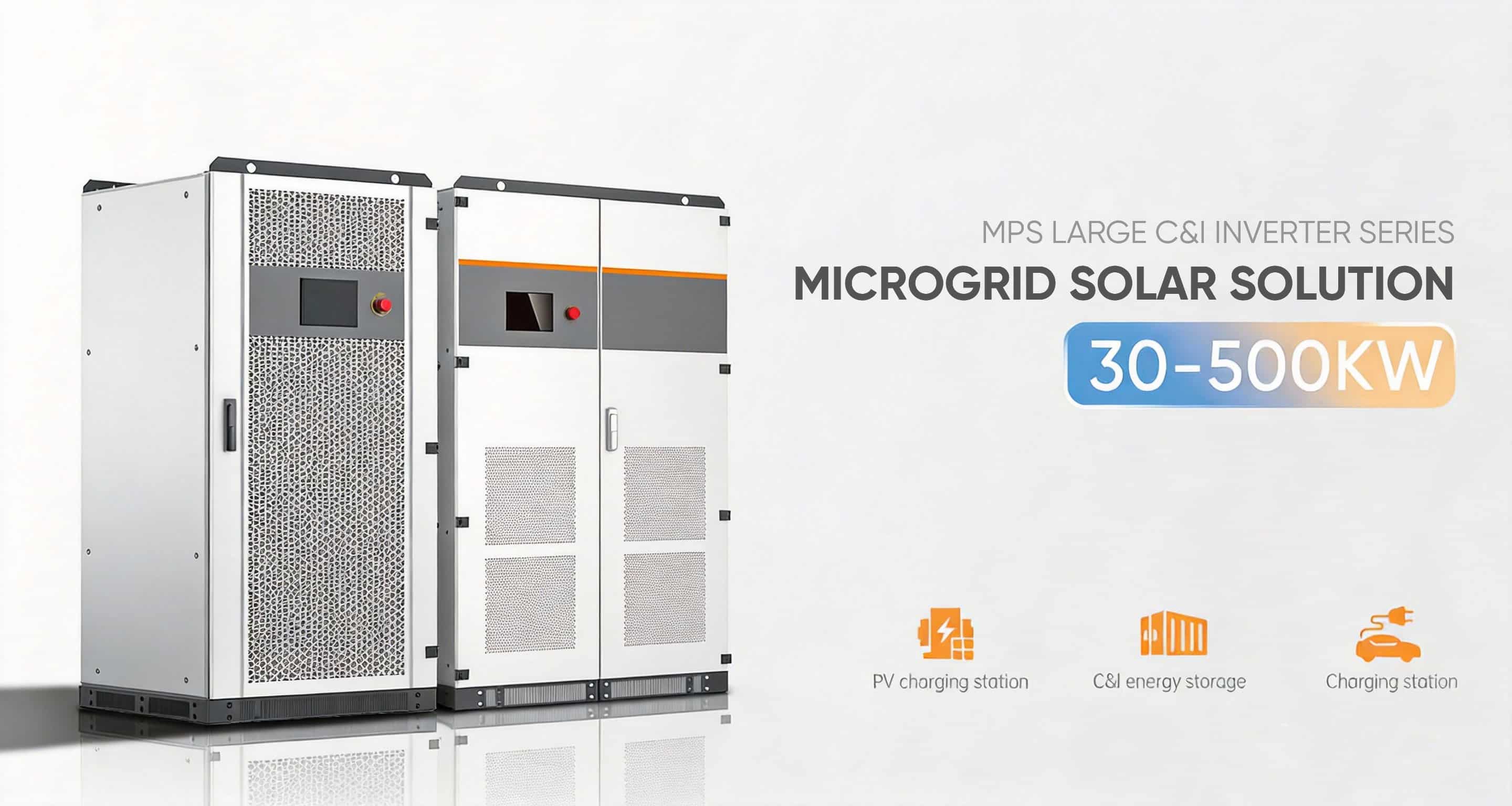

Customized 100KW 250KW 500KW Hybrid Solar Inverter Energy Storage Solar Inverter for Commercial and Industrial Use
This Hybrid inverter is an energy storage inverter that integrates a photovoltaic controller, energy storage converter, and grid-connected/off-grid automatic switching unit, which is a very good and convenient device used in big capacity hybrid energy storage system.
Articolo n. :
30KW/50KW/100KW/150KW/250KW/500KWMarca :
OEM/Sail SolarTensione nominale :
400V/Customized US VoltageTipo di batteria :
Lithium Battery/Lead Acid BatteryTipo di raffreddamento :
Air CoolingConnessione alla rete :
3W+N+PEClasse di protezione :
IP20Certificato :
EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGCComunicazione :
RS485/CANThis Hybrid inverter is an energy storage inverter that integrates a photovoltaic controller, energy storage converter, and grid-connected/off-grid automatic switching unit, which is a very good and convenient device used in microgrid system.

Specifications
| Power | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW |
| AC (Ongrid) | ||||||
| Max Output Power (KW) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Output Power (KW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage(V) | 400 | |||||
| Rated Current (A) | 320-460 | |||||
| Rated Frequency (Hz) | 50/60 | |||||
| THDI | <3% | |||||
| Power Factor | 1leading-1lagging (Settlable) | |||||
| Grid Type | 3W+N+PE | |||||
| AC (off-grid) | ||||||
| Max Output Power (KW) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Output Power (KW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage(V) | 400 | |||||
| Rated Current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| THDu | ≤1% linear; or≤5% nonlinear | |||||
| Rated Frequency (Hz) | 50/60 | |||||
| Overload Capacity | 110% long-term, 120% 1min | |||||
| PV Input | ||||||
| Max PV Input Voltage (V) | 1000 | |||||
| Max PV Power (KW) | 82.5 | 82.5 | 165/247.5 | 165/247.5/330 | 330/412.5 | 660/742.5/825 |
| Mppt Module Qty | 1 | 1 | 2/3 | 2/3/4 | 4/5 | 8/9/10 |
| Mppt Voltage Range (V) | 250-1000 | |||||
| Battery | ||||||
| Battery Voltage Range (V) | 250-850 | 320~850 | 420~950 | 420~950 | 420~950 | 500~950 |
| Max Charging Power (KW) | 33 | 55 | 110 | 165 | 275 | 550 |
| General Data | ||||||
| Operating Temperature | -30 ~ 55 | |||||
| Ingress Protection | IP20 | |||||
| Cooling | Air Cooling | |||||
| BMS Communication | RS485/CAN | |||||
| EMS Communication | RS485,TCP/IP | |||||
| Certificates | EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGC | |||||
Product Description

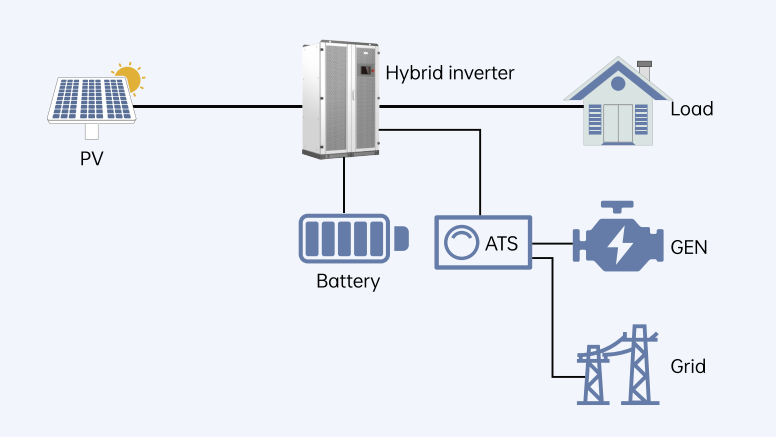

Working Mode:
Self-consumption:In this mode, the system gives priority to powering the load. If the photovoltaic power generation is not enough to drive the load, the photovoltaic and other power sources (batteries or grid) will be used together to power the load.
Battery priority:In this mode, the system gives priority to powering the battery, which is used to charge the battery when the system works in backup power conditions or in some usage scenarios.
Mixed mode:In this mode, the system can run different working modes in different time periods.
Optimal mode:In this mode, the system divides the working area according to the battery SOC to run different working modes.
Manual mode: In this mode, the system is dispatched by EMS or used for charging and discharging tests.

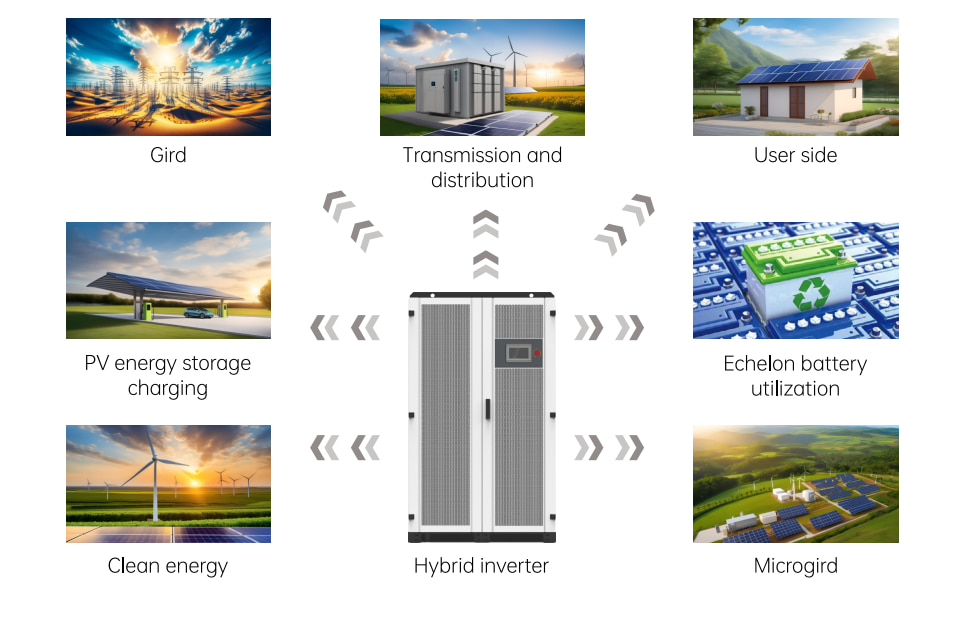

Applications
